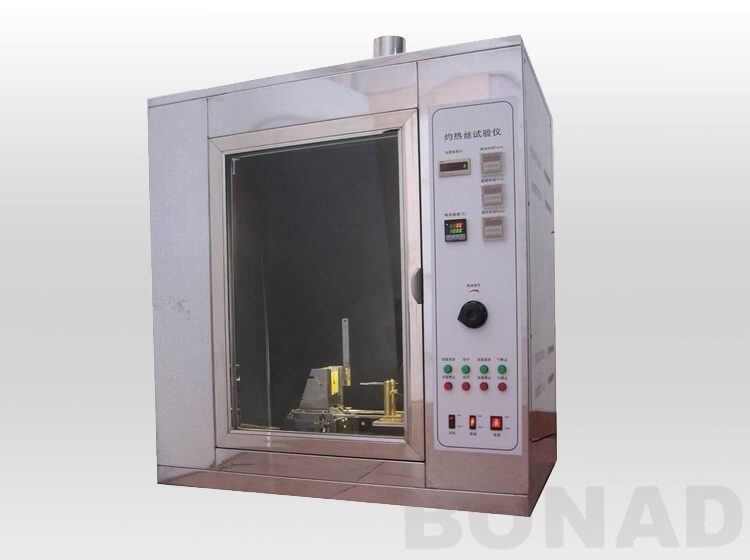

glow wire test chamber/ glow wire tester BND-ZRS

Glow wire Test Apparatus for marterial burning testGlow Wire Tester could be applicable to ignition hazard test, combustibility test of electronic industry, home electronic appliance and materials. The glow wire apparatus and common test procedure is to simulate the effect of thermal stressed witch may be produced by heat sources such as glowing elements or overloaded resistors, for short periods, in order to assess the fire hazard by a simulation technique.
Description

Product Description：

Name：glow wire test chamber/ glow wire tester

Type：BND-ZRS


Product Description

Glow wire Test Apparatus for marterial burning test

Glow Wire Tester could be applicable to ignition hazard test, combustibility test of electronic industry, home electronic appliance and materials. The glow wire apparatus and common test procedure is to simulate the effect of thermal stressed witch may be produced by heat sources such as glowing elements or overloaded resistors, for short periods, in order to assess the fire hazard by a simulation technique.

This product is designed according to GB4706.1-2005 (IEC60335-1:2004)Connecting devices for low voltage circuits for household and similar purposes--Part 1: General requirements and GB/T5169.10-2006 (IEC60695-2-10:2013) Fire hazard testing for electric and electronic products-part 10: Glow/hot-wire based test methods-Glow wire apparatus and common test procedure.

Glow Wire Tester’s crust and important parts are made by Stainless Steel, Sculpt daintily, endure smoke corrupt, high automatism, temperature control part made by import material, high precision, numeric shows time and temperature and reliable.


Detailed Images

Glow wire temperature500 ~ 1000 ℃ ± 2 ℃adjustable
Heating time0-999.9s ± 0.1s，adjustable (normally choose to 30s)
Ignition timer0-999.9s ± 0.1s, automatically records, manually suspended
ThermocoupleΦ0.5mm sheathed K-type thermocouple.
Flame extinguish time0-999.9s ± 0.1s, automatically records, manually suspended
Glow wireΦ4 mm nickel chromium wire.
hot depth7mm ± 0.5mm (to maintain the pressure of 1N ± 0.2N hot products into the test)
Sample frame speedabout 14mm / s
the pilot backgroundblack background.
the pilot processautomatic testing procedures, independent ventilation
referenceGB/T5169.10-2006, IEC60695-2-10, UL746A
Studio volume0.5 cubic
equipment size1000mm wide × 650mm deep × 1300mm high
power supplyAC220V ± 5%, 50Hz, 0.6KVA
