IEC 60529 2.5mm Test Rod with 3N BND-CF

Product Description：ip3x test rod is intended to verify the protection of persons against access to hazardous parts. It is also used to verify protection against access with a tool.ip3x Access probes of IEC 60529 (IP code) to verify protection of persons against access to hazardous live parts or hazardous mechanical partsAccording Standards:IEC 61032 : Protection of persons and equipment by enclosures – Probes for verification ,figure 3 test probe C.
Description

Product Description：

ip3x test rod is intended to verify the protection of persons against access to hazardous parts. It is also used to verify protection against access with a tool.

ip3x Access probes of IEC 60529 (IP code) to verify protection of persons against access to hazardous live parts or hazardous mechanical parts


According Standards:

IEC 61032 : Protection of persons and equipment by enclosures – Probes for verification ,figure 3 test probe C.

IEC 60529: Degrees of protection provided by enclosures (IP Code) IP3X

IEC 60335-1 :Household and similar electrical appliances – Safety – Part 1: General requirements


Application of test rod C with 3N force:


Model/Name Standard Parameters
BND-CF
test probe C with 3N Thrust		IEC61032  IEC60529Test Probe Length:100mm
Test probe Diameter:2.5mm
Dam-sphere Diameter:3.5mm
Handle Diameter:10mm
Handle Length:100mm

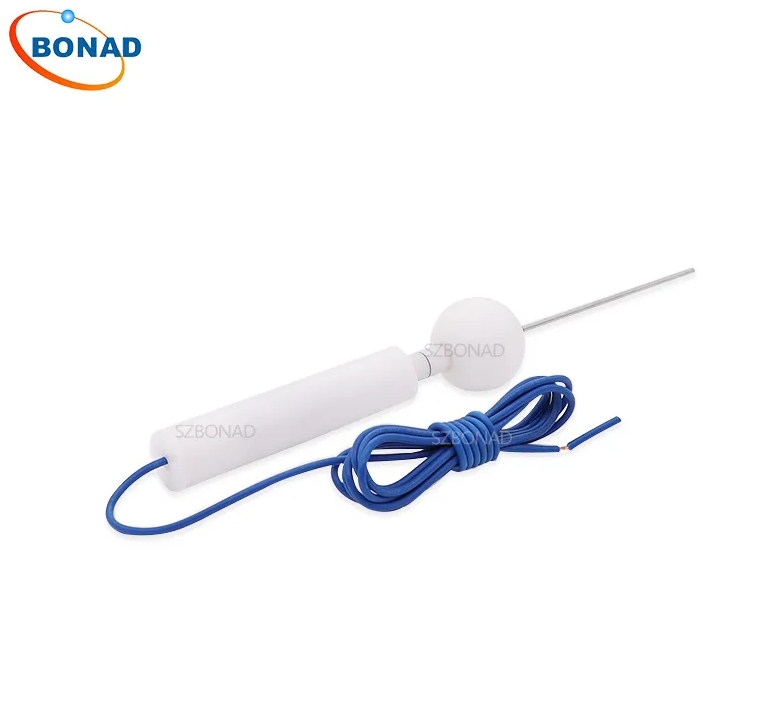

IEC 60529 2.5mm Test Rod-1

IEC 60529 2.5mm Test Rod-2

IEC 60529 2.5mm Test Rod-3
