Product Description：

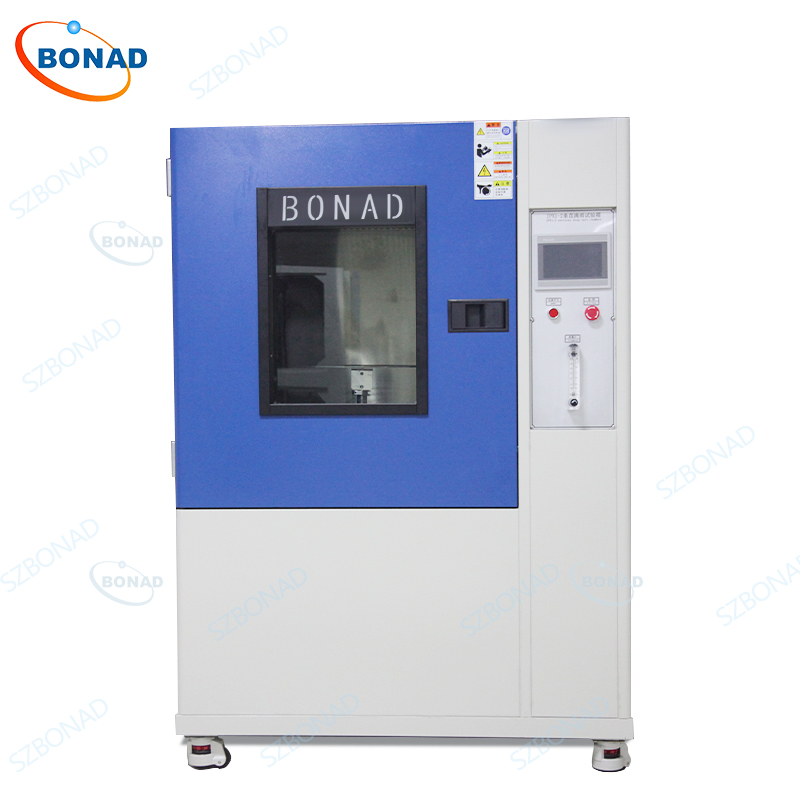

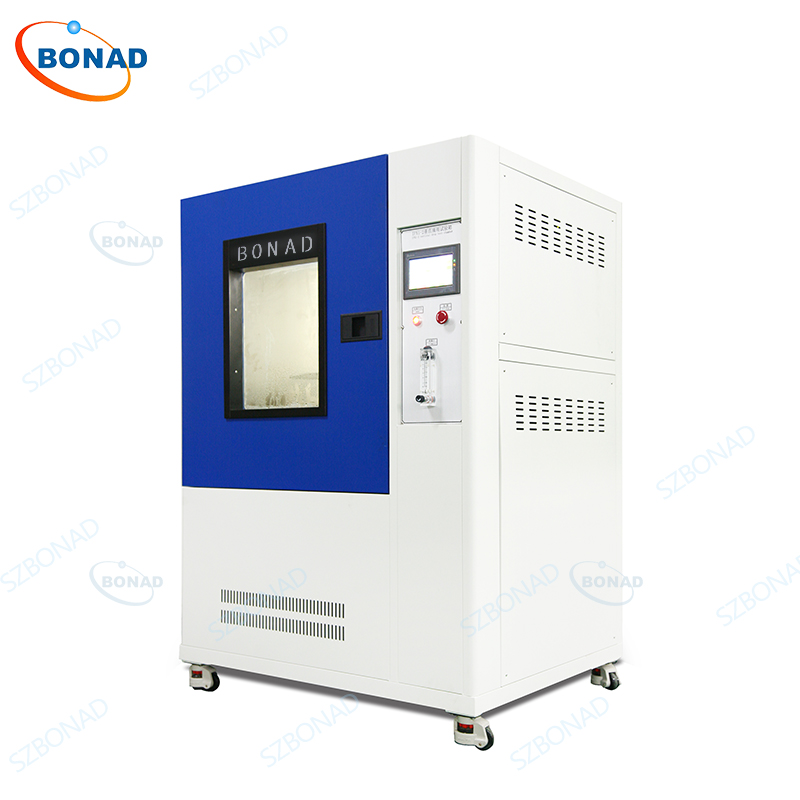

IEC 60529 IPX1 IPX2 Drip Rain Test Chamber

Model:BND-IPX12A

Box-type drip chamber Standard:

In accordance with IEC 60529: 2001 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008 "enclosure protection class (IP code)" 14.2.1,14.2.2 terms and Figure 3 and GB7000.1 "lamps Part I: General Requirements and test "9.2.3 requirements.

Box-type drip chamber Usage:

The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

Box-type drip chamber Features:

1: box-type structure, recycled water, the use of energy-saving, and do not have to do special waterproofing room, you can save input costs.

2: the box with SUS304 # stainless steel, can be used for a long time do not rust, the outer surface of the steel plate with spray paint, durable look good.

3: large window (tempered glass), close observation of the sample can clearly test the process.

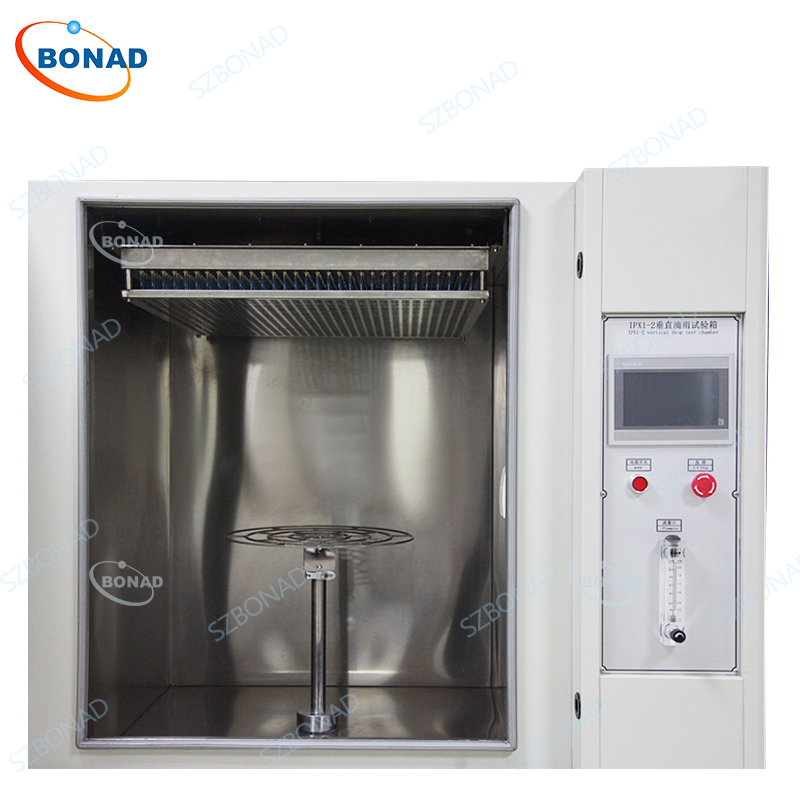

4: drip tank with vacuum design with high-rust stainless steel construction.

5: nozzle contact bit brass cone design, no tools to facilitate the replacement of needles, needles below the installation of protective cover, does not affect the rain effect and can effectively prevent the needle wounding.

6: Filter measures: Equipment standard filter to prevent pinhole plug; filter can be replaced regularly.

7: with compressed air drying function, the test is completed, the drip tank can be excluded from the excess water clean, to avoid prolonged water accumulation and plug the pinhole.

8: Turntable motor DC motor, can accurately ensure IPX1 standard 1r / min speed requirements, safe and dangerous electric shock, and can automatically complete the IPX2 test requirements of the four locations were 2.5mm drop rain test requirements.

9: time control function, set the time 0-999 minutes, to reach the test time can automatically stop.
