BS1363 Figure 1 Test pin plug and socket gauges

Product Description： Name：BS1363 Figure 1 Test pin plug and socket gauges Type：BND-BS1FIG1 No. Product name standard Quantity 1 Figure 1 — Test pin BS1363-2-Fig1 1 2 2a)Apparatus for mechanical strength test on resilient covers2b)Hardwood block for Figure 2a) BS1363-2-Fig2 2
Description

Product Description：

Name：BS1363 Figure 1 Test pin plug and socket gauges

Type：BND-BS1FIG1


No. Product name standard Quantity

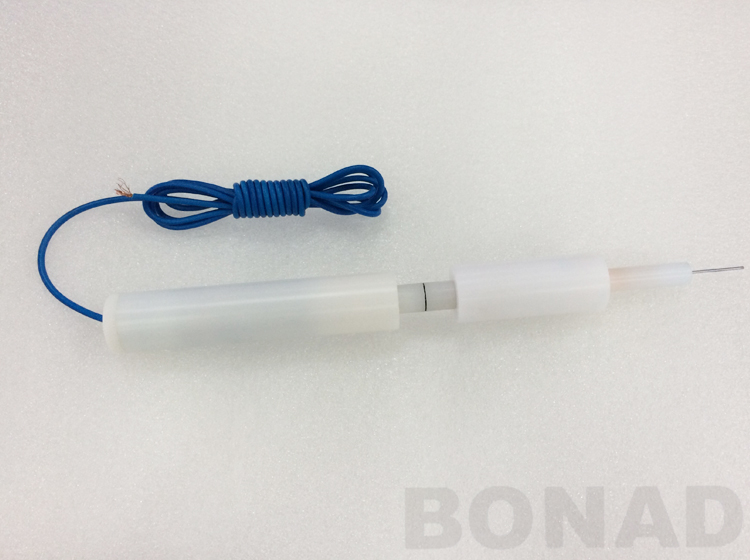

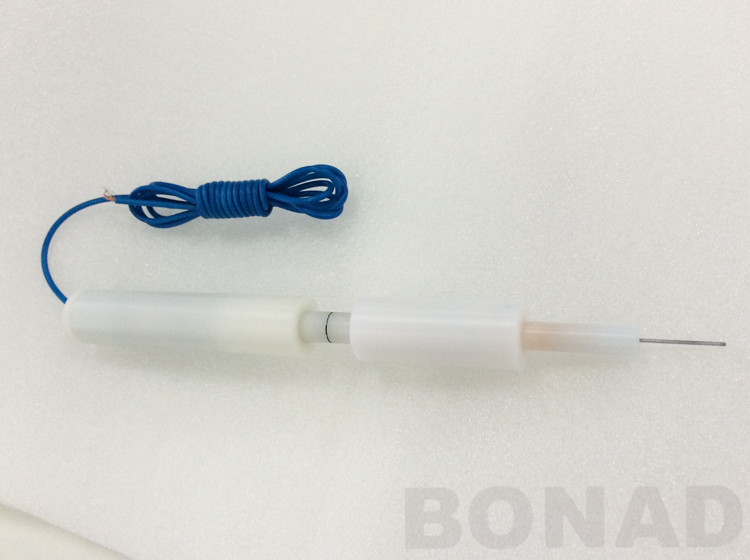

1 Figure 1 — Test pin BS1363-2-Fig1 1
2 2a)Apparatus for mechanical strength test on resilient covers
2b)Hardwood block for Figure 2a) 		BS1363-2-Fig2 2
3 Figure 11 — Go gauge for socket-outlet BS1363-2-Fig11max/min 2
4 Figure 12 — Contact test gauge BS1363-2-Fig12 1
5 Figure 13 — Test apparatus and circuit for use with contact and non-contact gauges

BS1363-2-Fig13

1
6 Figure 14 — Non-contact test gauge BS1363-2-Fig14 1
7 Figure 15 — Turning moment gauge BS1363-2-Fig15 1
8 Figure 16 — Withdrawal pull gauges for effectiveness of contact BS1363-2-Fig16a/b 2
9 Figure 18 — Apparatus for flexing test BS1363-2-Fig18 1
10 Figure 19 — Solid link for test on fuse clips BS1363-2-Fig19 1
11 Figure 20 — Tumbling barre BS1363-2-Fig20 1
12 Figure 21 — Pendulum impact test BS1363-2-Fig21 1
13 Figure 22 — Arrangements for mechanical strength test for portable socket-outlets BS1363-2-Fig22 1
14 Figure 23 — Apparatus for pressure test BS1363-2-Fig23 1
15 Figure 24 — Apparatus for ball pressure test BS1363-2-Fig24 1
16 Figure 28 — Calibrated link BS1363-2-Fig28 1
17 Figure 29 — Calibration jig for calibrated link BS1363-2-Fig29 1
18 Figure 30 — Test plug for temperature rise BS1363-2-Fig30 1


BS1363-2 Plugs and socket gauges
