ALS-10 Ambient light sensor

Product Description：Name：ALS-10 Ambient light sensorType：ALS-10※ Product Featurel Imported high-precision illuminance sensor with high measurement accuracy, fast response and good interchangeabilityl Waterproof enclosure with IP65 protectionl Multiple ranges are available to ensure accuracy and resolutionl Voltage, current, RS232, RS485 and other output interfaces for easy system integrationl Perfect input and output protection mechanism to ensure stable operation of the transmitter
Description

Product Description：

Name：ALS-10 Ambient light sensor

Type：ALS-10


※ Product Feature

l Imported high-precision illuminance sensor with high measurement accuracy, fast response and good interchangeability

l Waterproof enclosure with IP65 protection

l Multiple ranges are available to ensure accuracy and resolution

l Voltage, current, RS232, RS485 and other output interfaces for easy system integration

l Perfect input and output protection mechanism to ensure stable operation of the transmitter

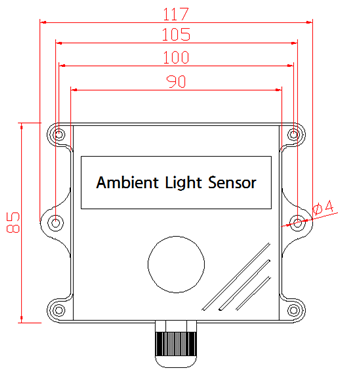

※ Dimensions


※ product selection

ALS-10

Code 1:

Measurement

range

A

B

C

D

E

0-5000LUX

0-10000LUX

0-20000LUX

0-100000LUX

0-200000LUX

Code 2:

Output

A

B

C

RS485

0-2V

4-20mA


※ Technical Parameter

Measurement parameter

Response time is less than 0.3 second

Measurement accuracy：±5%;

Protection level：IP65. Customizable outdoor waterproof.

Default cable length: 1 meter (can be customized)

Outer size ：117*85*41（mm）

Environment:

Working temperature range: -40~85℃

Input:

Working voltage 9-30V/DC DC
